A brief note about slot access cost in Common Lisp
Tagged as lisp
Written on 2026-05-27 by Daniel Kochmański
Common Lisp is renowned for its excellent object system CLOS. Its implementation is often accompanied by the Metaobject Protocol that, while it is not part of the standard, allows programmers to customize the system underpinnings in numerous interesting ways. This level of customization doesn't come without a cost – some CLOS code paths will be slower compared to open-coding equivalent solution while abstaining from using standard objects.
The purpose of this blog post is to draw an intuition of differences between structure objects and standard objects when it comes to accessing their slots. From now on I'm going to refer to structure objects as structures, and standard objects as instances.
We could imagine a structure is represented in memory as a tuple (CLASS SLOTS), while an instance is represented as a tuple (CLASS STAMP SLOTS). Modifying the structure class has undefined behavior, while the instance's class may change. This is why the instance needs to track whether it is up-to-date or obsolete. In our simple scheme that information is represented by a stamp that represents the class generation.
Tracking whether the instance is obsolete is important, because the memory layout of slots may change - they may be deleted, added, or moved to different positions. This is convenient for long-running programs without downtime, for incremental development and for image-based workflows - the program may be modified at any time to account for changing requirements, without recompiling it from scratch.
But it doesn't come without a downside. The implementation may conformingly assume, that structure accessors won't ever change and they may be inlined. That means in particular, that structure access is a simple memory reference.
(declaim (inline structure-reader-a))
(defun structure-reader-a (object)
(svref (%slots object) 3))
While with the object we can't assume that, because we need to check whether the object is not obsolete (at the very least), and because readers are more generic functions - another level of flexibility. Inlining generic functions is hard, because new methods may be added at runtime and the effective method can change. Moreover there may be different classes that have same reader names, so we need to include a piece of code that uses the correct class layout for an instance.
This is why calling instance readers involves:
- calling a function (can't be inlined)
- finding the memory layout (dispatch)
- verifying whether the instance is up-to-date
That is exemplified by the following pseudocode that ignores other generic function intrinsics. Depending on the implementation of generic functions, the test for obsolete instances may be evaded when instances are not obsolete.
(declaim (notinline instance-reader-a))
(define-reader-function instance-reader-a (object)
(unless (%up-to-date-p object)
;; Among other things updates indexes for memory accesses.
;; This is a slow path.
(%recompile-reader-function #'instance-reader-a)
(return-from instance-reader-a (instance-reader-a object)))
(typecase object
(standard-class-a (svref (%slots object) 3))
(standard-class-b (svref (%slots object) 4))
(custom-class-c (slot-value object 'a))
(custom-class-d (slot-value object 'a))
(otherwise (no-applicable-method #'instance-reader-a object))))
All this is assuming, that we deal with standard readers. Using the metaobject protocol it is possible to store slot values anywhere, most notably not in a vector bundled with the instance, or to add additional preprocessing. I'm not going to touch here much on MOP - it is just to signify, that standard readers for standard classes may directly access the slot vector.
At minimum, assuming a single reader and a clever dispatch algorithm:
(declaim (notinline instance-reader-a))
(define-reader-function instance-reader-a (object)
(if (eql (stamp object) 42)
(svref (%slots object) 3)
(if (%up-to-date-p object)
(no-applicable-method #'instance-reader-a object)
(progn
(%recompile-reader-function #'instance-reader-a)
(return-from instance-reader-a (instance-reader-a object))))))
In other words comparing structure access with instance readers is comparing apples to oranges, because the former is a memory access, while the latter is a function call.
SLOT-VALUE will be even slower, because this function is a trampoline to a more involved SLOT-VALUE-USING-CLASS, and to do that we need to:
- read the object class
- find the slot definition in the class
- invoke a generic function SLOT-VALUE-USING-CLASS
The generic function SLOT-VALUE-USING-CLASS may be similar to the reader defined above with a caveat, that it has more arguments to dispatch on (so the dispatch procedure may be more involved). In any case, it is at least as slow as the optimal reader defined above (a single reader for the standard class).
(defun slot-value (object slot-name)
(let* ((class (class-of object))
(slots (mop:class-slots class))
(slot (find slot-name slots :key #'mop:slot-definition-name)))
(mop:slot-value-using-class class object slot)))
Tim Bradshaw recently made a blog post that claims that instance slot access is
around 38x slower than structure access, but he compares inlined memory access
to generic function dispatch. A fair comparison would use the operator
STANDARD-INSTANCE-ACCESS.
Metaobject protocol defines an optimized way to access instance slots that does
not incur overhead associated with dispatching generic functions by calling the
function STANDARD-INSTANCE-ACCESS. This function may be inlined and is similar
to structure object accessors. A possible definition would look like this:
(declare (inline mop:standard-instance-access))
(defun mop:standard-instance-access (object location)
(svref (%slots object) location))
The argument LOCATION is technically an opaque object, but for the illustration
purposes we assume that it is an index (it usually is!). Its value may be read
using the function SLOT-DEFINITION-LOCATION.
Let's dig into benchmarks! We will measure access time to slots in equivalent structure and instance, each containing ten untyped slots initialized with fixnums.
(defpackage "FAR-FROM-MOP"
(:import-from #+ccl "CCL"
#+ecl "MOP"
#+lispworks "CLOS"
#+sbcl "SB-MOP"
#-(or ccl ecl lispworks sbcl) "MOP"
"FINALIZE-INHERITANCE"
"CLASS-SLOTS"
"SLOT-DEFINITION-LOCATION"
"SLOT-DEFINITION-NAME"
"STANDARD-INSTANCE-ACCESS")
(:export "FINALIZE-INHERITANCE" "CLASS-SLOTS" "SLOT-DEFINITION-LOCATION"
"SLOT-DEFINITION-NAME" "STANDARD-INSTANCE-ACCESS"))
(defpackage "EU.TURTLEWARE.SLOT-BENCH"
(:use "CL")
(:local-nicknames ("MOP" "FAR-FROM-MOP")))
(in-package "EU.TURTLEWARE.SLOT-BENCH")
(eval-when (:compile-toplevel :load-toplevel :execute)
(defclass a ()
((a :initform (random 10) :reader a-a)
(b :initform (random 10) :reader a-b)
(c :initform (random 10) :reader a-c)
(d :initform (random 10) :reader a-d)
(e :initform (random 10) :reader a-e)
(f :initform (random 10) :reader a-f)
(g :initform (random 10) :reader a-g)
(h :initform (random 10) :reader a-h)
(i :initform (random 10) :reader a-i)
(j :initform (random 10) :reader a-j)))
(defstruct b
(a (random 10)) (b (random 10)) (c (random 10)) (d (random 10)) (e (random 10))
(f (random 10)) (g (random 10)) (h (random 10)) (i (random 10)) (j (random 10)))
(defparameter *o1* (make-instance 'a))
(defparameter *o2* (make-b))
(defparameter *locations*
(mapcar (lambda (slot-name)
(let ((class (find-class 'a)))
(mop:finalize-inheritance class)
(mop:slot-definition-location
(find slot-name (mop:class-slots class)
:key #'mop:slot-definition-name))))
'(a b c d e f g h i j))))
We will measure four slot reading patterns:
- structure: structure reader
- instance : reader,
SLOT-VALUEandMOP:STANDARD-INSTANCE-ACCESS
Moreover, to put some pressure on a hypothesized method cache, we will randomize
access to slots. The macro expand-body generates consecutive access forms:
(defmacro expand-body (type n-access)
(flet ((random-a () (nth (random 10) '(a-a a-b a-c a-d a-e a-f a-g a-h a-i a-j)))
(random-b () (nth (random 10) '(b-a b-b b-c b-d b-e b-f b-g b-h b-i b-j)))
(random-s () (nth (random 10) '(a b c d e f g h i j)))
(random-l () (nth (random 10) *locations*)))
(ecase type
(:reader
`(progn
,@(loop repeat n-access
for read = `(,(random-a) object)
collect `(incf count (the fixnum ,read)))))
(:slot-value
`(progn
,@(loop repeat n-access
for read = `(slot-value object ',(random-s))
collect `(incf count (the fixnum ,read)))))
(:instance-access
`(progn
,@(loop repeat n-access
for read = #+lispworks `(mop:fast-standard-instance-access object ',(random-l))
#-lispworks `(mop:standard-instance-access object ',(random-l))
collect `(incf count (the fixnum ,read)))))
(:structure-access
`(progn
,@(loop repeat n-access
for read = `(,(random-b) object)
collect `(incf count (the fixnum ,read))))))))
Now our "benchmark tool" and the tests. It is a simple measurement that compares internal real times before and after the computation.
(defmacro do-bench (() &body body)
`(let ((now (get-internal-real-time))
(cnt (progn ,@body)))
(values (- (get-internal-real-time) now) cnt)))
(macrolet ((frob (name object access-type)
`(defun ,name (n &aux (object ,object))
(declare (fixnum n)
(optimize (speed 3) (safety 0) (debug 0)))
(do-bench ()
(let ((count 0))
(declare (fixnum count))
(dotimes (v n count)
(expand-body ,access-type 100)))))))
(frob test-object-v1 *o1* :reader)
(frob test-object-v2 *o1* :slot-value)
(frob test-object-v3 *o1* :instance-access)
(frob test-object-v4 *o2* :structure-access))
(defun test-batch (n)
(list (test-object-v1 n)
(test-object-v2 n)
(test-object-v3 n)
(test-object-v4 n)))
(defun do-benchmarks ()
(list* (list (lisp-implementation-type)
(lisp-implementation-version)
(machine-type)
internal-time-units-per-second)
(loop for e from 17 upto 26
for n = (expt 2 e)
collect (let (b)
(format t "... (expt 2 ~a):~%" e)
(setf b (test-batch n))
(format t "~a~%" b)
b))))

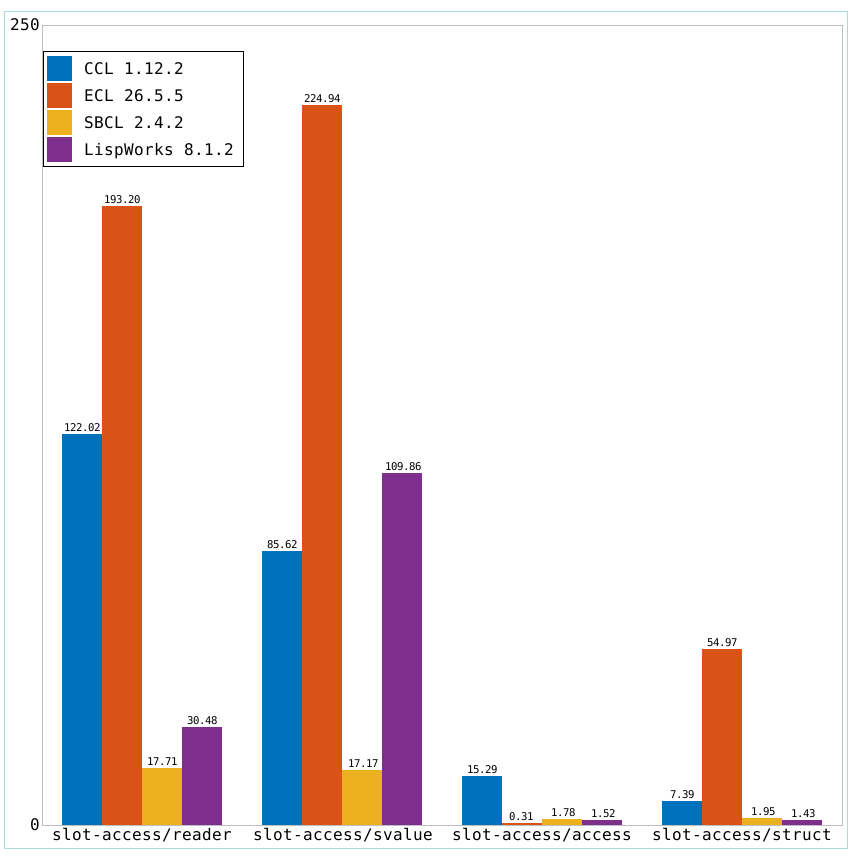

I've run these tests on four implementations. This table presents ratios of the access pattern compared to the best result. Absolute timings are not included.
| Implementation | reader / best | svalue / best | access / best | struct / best |
|---|---|---|---|---|
| CCL 1.12.2 | 17 | 12 | 2 | 1 |
| ECL 26.5.5 | 616 | 719 | 1 | 175 |
| LispWorks 8.1.2 | 22 | 79 | 1 | 1 |
| SBCL 2.4.2 | 10 | 9 | 1 | 1 |
Conclusions:
Accessing slots using generic functions is indeed slower than a single memory access. This is because we can't inline these functions, and we must take care of many possibilities - most notably dispatching arguments of different classes and redefinitions of both the instance class and the reader generic function. All this cost buys us extensibility and runtime flexibility of the program.
Readers, under certain circumstances, can be better optimized than SLOT-VALUE,
because they don't have to go through another function and access class slot
definition. CCL and SBCL don't exploit this optimization opportunity.
Instance memory access and structure memory access times are roughly the same on SBCL and LispWorks, while instance access is two times slower on CCL. ECL does a peculiar thing where structure readers are not inlined for some reason. That needs investigating, but hey, the instance access is 175x faster ;-)!
Notes:
To avoid external dependencies, I've defined a very basic time measurement and used MOP operators directly defined by a few hand-picked implementations. For more complete solutions look into "trivial-benchmark" by Yukari Hafner and "closer-mop" by Pascal Costanza.
Lispworks CLOS::STANDARD-INSTANCE-ACCESS does not conform to MOP specification
and errors when supplied with the slot location (it expects the slot name). That
severely impacts the performance of the instance access. The correct function to
call is, for some reason, CLOS::FAST-STANDARD-INSTANCE-ACCESS.
ECL performance is poor in comparison, but I have good news! I'm implementing Fast Generic Function Dispatch algorithm and it will get better.
Somewhat a point of interest, but some implementations specialize
slot-value-using-class and other CLOS protocols to structure classes too.
